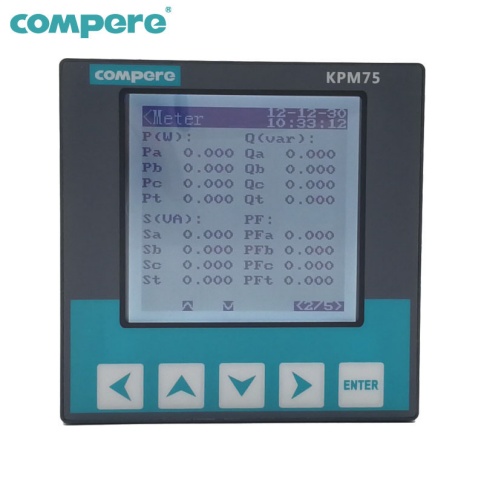

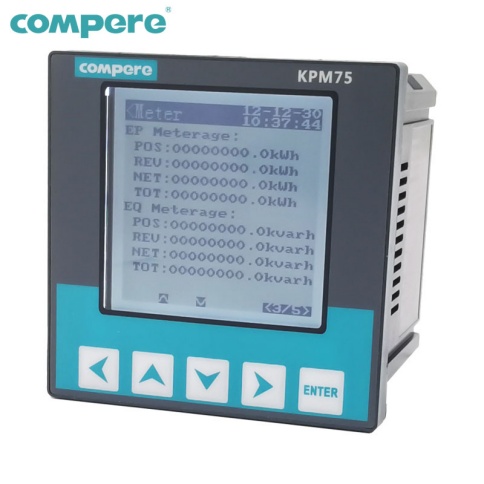

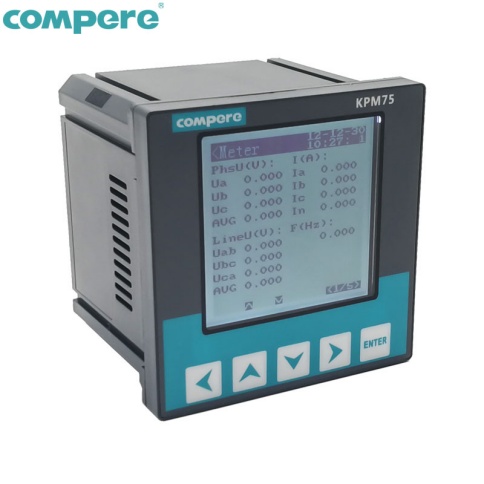

The KPM75 power quality analyzer complies with international power quality standards and can monitor various power quality parameters, including flicker, voltage interruptions, and harmonics up to 63rd order. It also features power data statistics, I/O signal control and alarms, and communication functions. It is primarily used for real-time online power quality monitoring of incoming power grids in main circuits.
| Working Power Source | Operating Voltage | AC 85-265V / DC 80-310V |
| Rated Power Consumption | < 3VA | |
| Input Voltage | Rated Voltage | 57.7/100V, 220/380V, 380/660V |
| Overvoltage Capability | 1.2x rated voltage (continuous); 2x rated voltage (10s) | |
| Input Current | Rated Current | Default 5A, Range: 1-6A; Optional 1A, Range: 1-1.2A |
| Overload Capacity | 1.2x rated current (continuous); 20x rated current (1s) | |
| Measurement Accuracy | Voltage | ±0.2% (0.01V) |
| Current | ±0.2% (0.01A) | |
| Communication | Port | RS485, Photoelectric isolation interface |
| Protocol | Modbus-RTU, 1200-38400BPS | |
| Safety | Withstand Voltage | AC2kV/min~1mA input-output-source |
| Insulation | >50MΩ |
