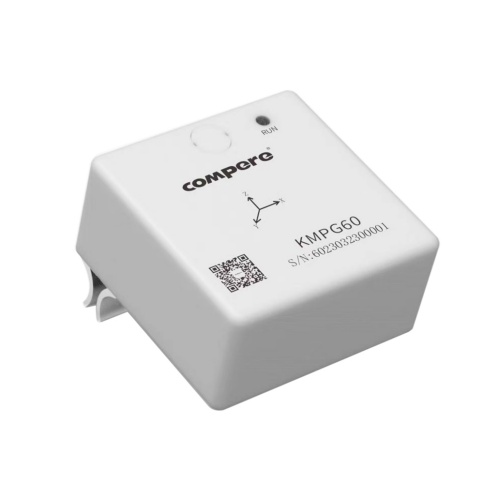

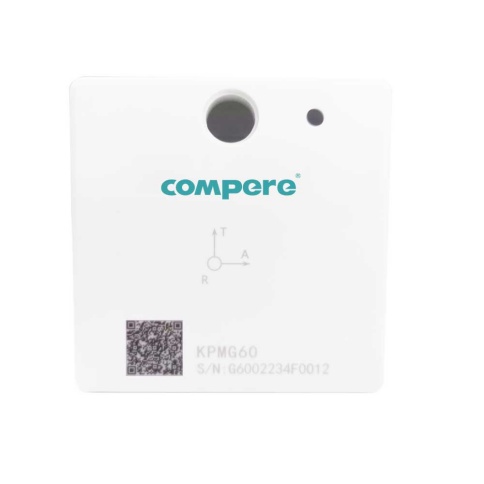

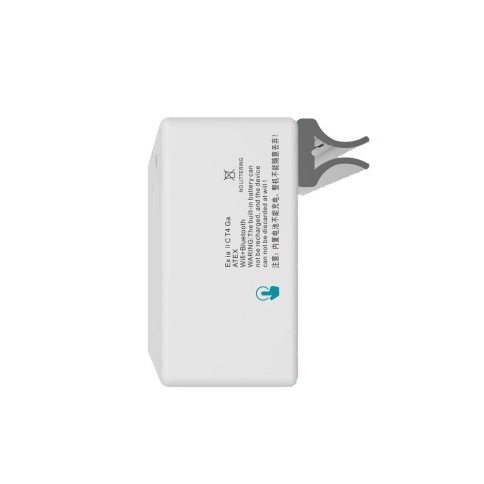

KPMG60 Motor Smart Temperature Vibration Sensor

The KPMG60 motor smart temperature vibration sensor is a next-generation vibration data acquisition device. It's waterproof and dustproof, easy to install and maintain, and utilizes wireless digital signal transmission to effectively avoid noise interference associated with long-distance cable transmission. The entire measurement system offers high accuracy and robust anti-interference performance, ensuring stable and reliable data transmission.

Features

Comprehensive motor protection functions: with start timeout, overload, stall, phase failure, current balance, grounding, underload, stall, overvoltage protection, undervoltage protection, power factor protection, phase sequence protection and other protection functions.
Default Modbus RTU communication, optional Profibus-DP communication.
With 8DI, 4DO.

Functions of KPMG60 Motor Smart Temperature Vibration Sensor

Vibration measurement: Vibration, Speed, Acceleration, Frequency
Temperature measurement: -40～85℃
Ultrasonic measurement: Microphone Range of amplitude: 0.6 N/m2 – 20 N/m2
Measurement frequency: 100Hz~80kHz

KPMG60 Motor Smart Temperature Vibration Sensor

KPMG60 Motor Smart Temperature Vibration Sensor Technical Specification

Technical parameters of KPMG60 smart bluetooth sensor wireless iot wifi motor vibration sensor
Vibration Characteristics	Measurement of vibration parameters	3 axes (each axis contains displacement peak value, acceleration peak value, velocity RMS value)
	Speed measurement range	0.01-200mm/s
	Acceleration measurement range	±16g
	Resolution	0.01m/s2
	Precision	Acceleration: ±5%@80Hz Speed: ±5%@80Hz Displacement: ±5%@80Hz
	Frequency Response Range	10Hz-1600Hz
Temperature Characteristics	Measurement Range	-40～85℃
	Resolution	0.1°C
	Precision	±1℃(under temperature stable condition)
Ultrasonic measurements	Microphone	Range of amplitude: 0.6 mN/m2 - 20 N/m2
Ultrasonic measurements	Microphone	Measurement frequency: 100Hz~80kHz
Power supply parameters	Power supply method	3.6V (Li-ion battery)
	Battery Capacity	Battery capacity 12000mAH, 3.6V
	Standby current	<30uA
	Operating current	<20mA during acquisition, <300mA during data upload
Housing parameters	Housing	Stainless steel/reinforced PBT
	Dimension(LWH)	86mm86mm41.9mm
	Installation method	Aluminum clamp, flat bottom mounting (on equipment platform or heat sink bars)
	Protection level	IP66
Working Environment	Hitting the Limits	100g
Working Environment	Ambient temperature range	-40~85℃
