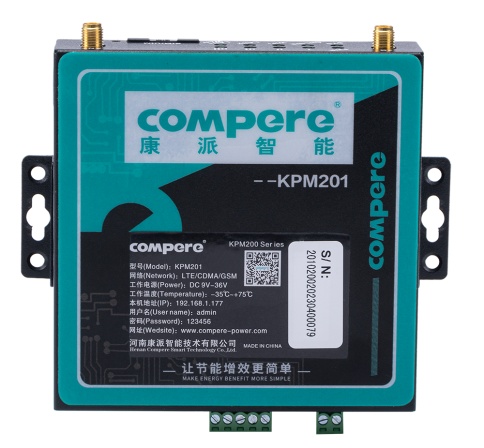

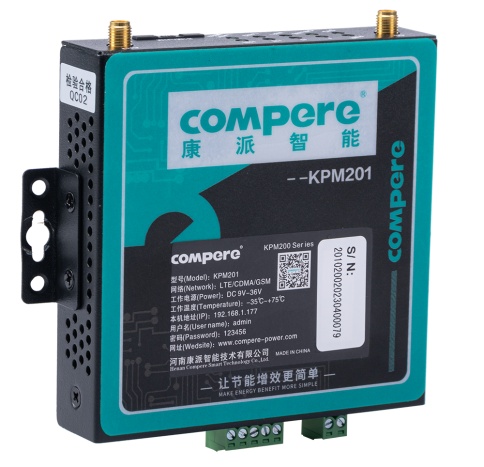

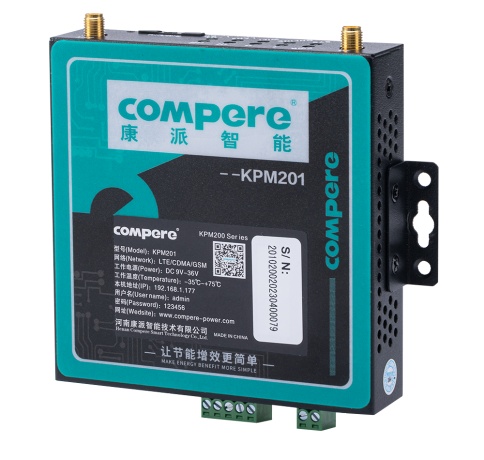

The KPM201 is an IoT Modbus gateway supporting WiFi and 4G communications. It is primarily used to collect data from intelligent terminals such as smart meters, distribution protection devices, automation equipment, and monitoring systems. This device transmits collected data to computer systems or power grid automation platforms, enabling data conversion and information exchange, thereby building a flexible, distributed RTU communication system.
| Modbus Gateway Hardware | |
| RAM | 64MB DDR2 (Upto 128M / 256MB) |
| FLASH | 16MB SPI FLASH (Upto 32MB) |
| WIFI | Optional, 2.4G support 802.11b/g/n, max 150Mbps |
| Network | Industrial 4G module, Support 7-mode full Netcom |
| System time | Time synchronization adopts NTP technology with built-in RTC |
| Hardware port | |
| WAN | LAN1 can be set as 1 WAN port |
| LAN | 2 * (10M/100M self-adjust MDI/MDIX port) |
| SIM | 1 (support 1.8V/3V SIM/UIM card) |
| Reset | 1 (reset button) |
| Antenna interface | 1 (3G/4G Antenna, impedance 50Ω, SMA Female inner hole interface), 1 (2.4G Antenna, impedance 50Ω, SMA inner pin) |
| Power supply terminal | 1 (2 pins 3.81mm spacing connector) |
| Console | 1 (5 pins 3.5mm spacing connector, 1 * RS232 / 1 * RS485) |
| Indicator | 8 power and status indicators (Power, System, LAN1, LAN2, SIM, Online, WIFI, 3G/4G) |
| Power supply characteristics | |
| Power | External power adapter (12V 1A) |
| Work voltage | DC 5~36V (Extendable 5-60V) |
| Standby power consumption | 150～230 mA@12V DC |
| Work cost | 250～310mA @12V DC |
| Working conditions | |
| Operating temperature | -35～+75ºC (-31～+167℉) |
| Storage temperature | -40～+85ºC (-40～+185℉) |
| Working humidity | 5%~95% (No condensation) |
| Equipment ventilation | Natural heat dissipation, no noise |
| Physical characteristics | |
| Chassis | Metal |
| Dimensions | L*W*H: 100mm * 100mm * 23mm (Excluding the installation parts of the antenna) |
| Installation method | Desktop flat, rail installation, wall-mounted |
| Weight | G.W: 0.6KG (With accessories and packing box), N.W: 0.3KG (Not include antenna and mounting parts) |
