DIN Rail Energy Meter Compact Panel Solution: Maximizing Measurement Points in Switchgear Space

With the rapid development of Industry 4.0, digital data centers, and smart buildings, the precision requirements for energy consumption monitoring in electrical systems have reached unprecedented levels. Enterprises are no longer satisfied with simply measuring the total incoming power; they want precise control over the power consumption of every branch circuit, every critical piece of equipment, and even every cabinet.

However, the internal space of distribution boxes and switchgear is often fixed at the initial design stage. Without increasing the physical size of the cabinets, how to "squeeze out more measurement points within a limited space" has become a core challenge for modern electrical engineers. The compact panel solution for DIN rail energy meters is a breakthrough solution to this challenge.

The Root Causes and Pain Points of "Every Inch of Space is Precious" in Switchgear

Zero Redundancy in Retrofit Projects: In energy-saving retrofits of old buildings or existing factories, the original distribution cabinet space is already filled with circuit breakers, surge protectors, etc., making it impossible to accommodate bulky traditional energy meters.

Surge in Demand for Multi-Circuit Monitoring: A standard three-phase switchgear may contain a dozen or even dozens of branch outgoing circuits. If each circuit used a traditional three-phase meter, the required rail length would be astronomical.

High installation and wiring costs: High density means dense wiring. The traditional method of directly connecting thick wires in meters not only takes up space but also leads to messy wiring within the cabinet, creating potential heat dissipation and safety hazards.

Core Solution: How to maximize the number of measurement points?

This compact panel solution achieves an extreme leap in space utilization through a combination of hardware miniaturization, multi-circuit integration, and flexible sensing technology.

1. Ultra-thin modular design, significantly increasing single-rail capacity

Traditional meters often occupy 72mm or more of rail space. The new compact DIN rail meter:

Single-phase module: Only 1 module wide (18mm), meaning that theoretically, up to 55 single-phase measurement points can be installed side-by-side on a standard 1-meter rail.

Three-phase module: Width controlled within 4 modules (72mm), with even more advanced 2-module three-phase designs available, increasing single-rail capacity by 2-3 times compared to traditional solutions.

2. Multi-circuit integrated architecture

This is the most efficient solution for maximizing the number of measurement points within a limited space.

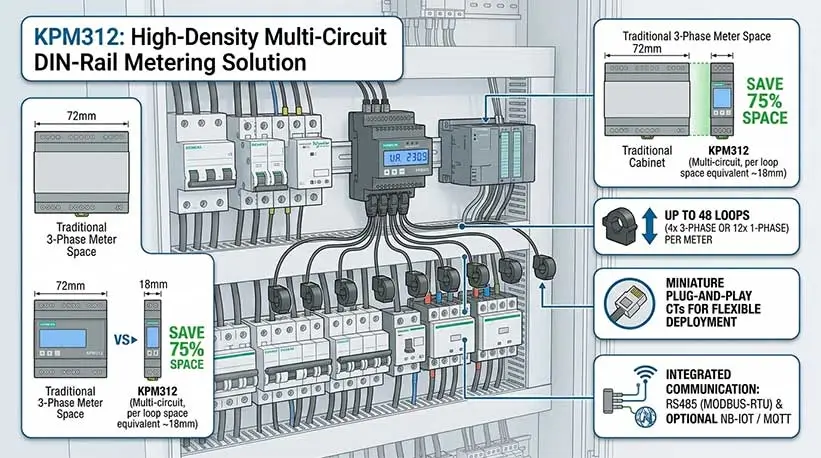

One meter, multiple channels: The solution adopts a "one main unit + multiple measurement channels" structure. Within a standard 4-module (72mm) housing, a processing chip capable of simultaneously measuring 4 three-phase circuits or 12 single-phase circuits is integrated.

Double efficiency: Essentially, the space previously required for 4 independent three-phase meters is condensed into the volume of a single meter, directly doubling the measurement point density.

3. Miniature external Rogowski coil/open CT (current transformer)

Traditional straight-through wiring requires connecting heavy cables directly to the meter terminals, which not only occupies space but is also extremely difficult to bend. Milliampere-level secondary signal: The compact solution completely abandons the direct-through design, replacing it with an external miniature open-type current transformer (CT) or a flexible Rogowski coil.

Plug and play: The CT connects to the meter unit via a lightweight RJ12 interface or a small-diameter signal cable. This not only minimizes the size of the meter itself but also allows for rapid installation without power interruption, greatly freeing up wiring space within the cabinet.

The compact panel's "beauty inside and out": Human-machine interaction and intelligent communication

Despite its extremely compact size, no compromises have been made in functionality or user experience:

High-density display panel: Utilizing a highly integrated LCD panel, with scrolling switching or high-resolution multi-line display, current, voltage, and energy data for multiple circuits can be viewed simultaneously on a single screen.

"One-for-Ten" Communication Bus: Facing dozens of measurement points, the solution avoids traditional point-to-line connections. Instead, it uses a daisy-chain RS485 (Modbus-RTU) bus for continuous connection, or directly uploads data from all loops via a single Ethernet (Modbus-TCP)/gateway module, significantly simplifying secondary low-voltage cabling within the cabinet.

Technical Parameters and Space Efficiency Comparison

Typical Application Scenarios

High-Density, High-Heat Distribution in Data Centers (PDU/Row Cabinet): In densely packed server racks, each feeder is precisely monitored. Combined with a miniature CT, comprehensive monitoring of dozens of switches in a single cabinet is achieved within a very small space.

Industrial Automation Multi-Loop Control Cabinets: Production lines contain numerous motors, heaters, robotic arms, and other equipment. Compact rail meters can be directly mounted on rails next to the PLC, eliminating the need for modifications to the cabinet dimensions.

New Infrastructure Charging Pile Group Control System: In the power distribution room of a centralized charging station, centralized metering and power quality monitoring are performed on dozens of charging pile branch circuits.

Conclusion

In today's digital transformation of electrical equipment, "space" itself is a significant cost. The DIN rail-mounted energy meter compact panel solution perfectly overcomes the limitations of switchgear space by combining modular hardware, multi-circuit integration, and advanced sensing technology. It not only helps companies maximize measurement point coverage within limited space but also lays a solid foundation for building sophisticated, high-density intelligent power distribution and energy efficiency management systems through its convenient deployment and powerful networking capabilities.
