Unveiling the Application of Rogowski Coils in Energy Efficiency Terminals

With the advancement of the national "dual-carbon" strategy, enterprises have an increasingly urgent need for refined energy management. However, when carrying out intelligent transformation of power distribution systems, engineers often encounter a thorny problem: space is too small to accommodate current transformers (CTs), and the current is too high for accurate measurement.

Especially in high-current applications such as data centers and semiconductor plants, traditional solutions are often ineffective. Today, we will introduce a cutting-edge technology—the Rogowski coil.

What Is a Rogowski Coil?

A Rogowski coil is a hollow toroidal coil sensor. Unlike traditional iron-core CTs, it does not exhibit magnetic saturation. Simply put: a traditional CT is like a "funnel," overflowing when the current flow is too large (saturation distortion); while a Rogowski coil is like a "pipe," transmitting data smoothly regardless of the flow rate.

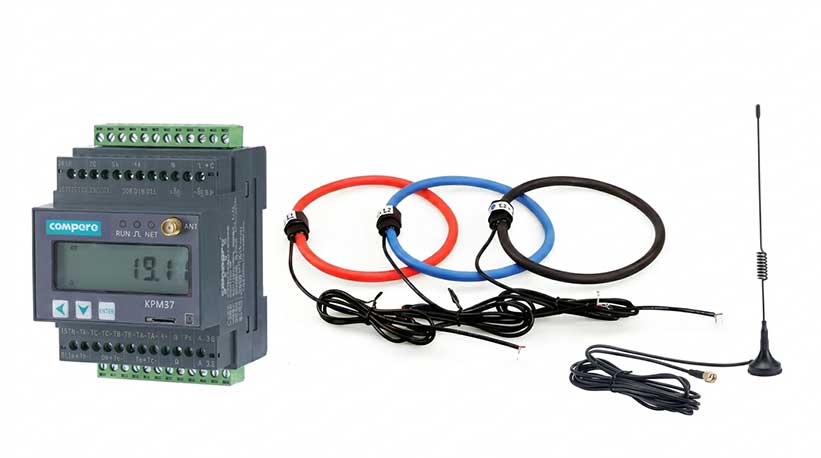

Rail-Mounted Smart Meter + Rogowski Coil = Perfect Retrofit Solution

We combine this technology with a three-phase rail-mounted smart power efficiency terminal, bringing a revolutionary experience: Extremely Compact, Space-Constrained: Traditional 2500A current measurement requires massive copper busbars and bulky current transformers (CTs), while the Rogowski coil, flexible as a rope, easily winds around the copper busbar. Combined with a palm-sized rail-mounted terminal, it can be easily installed even in cramped, old distribution boxes.

Ultra-Wide Meter Range, Universal Compatibility: Supports an ultra-wide meter range from 5A to 10000A. Whether it's a lighting circuit or a large central air conditioning unit, the same efficiency terminal can be used, greatly reducing the difficulty of inventory and selection.

Real Waveform, Precise Analysis: Due to the absence of hysteresis, it can accurately capture transient inrush currents (such as the instant a motor starts), providing the most accurate data foundation for power quality analysis and energy consumption optimization.

Typical Application Scenarios?

Data Center Server Racks: Space is extremely limited, requiring high-precision monitoring of the power consumption of every server rack.

Industrial electric furnaces/electrolytic aluminum: extremely high current, which traditional CTs cannot handle.

Commercial complex renovations: uninterrupted construction, flexible installation.

The first step in energy efficiency management is accurate measurement. The application of Rogowski coil technology breaks down the barriers to high-current measurement, making the destination of every unit of electricity clearly visible.
